Drawing Machine
Lesson Plans & Technical Steps
1: Functions
You may be familiar with p5.js included functions like mouseDragged(). Just like with variables, we can create our own functions to reuse code. This helps keep code modular and efficient. The syntax for creating a function is:
function functionName() { // beginning of function
// everything in between these curly brackets
// will run when the function is called
} // end of function
Typically, we write functions near the bottom of the code, after the draw() function’s curly braces. This example uses a function to draw an eye:
function setup() {
createCanvas(600, 600);
}
function draw() {
background(255, 225, 255);
noStroke();
fill(255, 255, 100);
ellipse(300, 300, 400, 400);
}
function eye() {
strokeWeight(1);
fill(255);
ellipse(400, 280, 60, 60);
fill(0, 0, 0);
ellipse(400, 285, 40, 40);
}
You’ll notice that nothing happened. This is because in order for the code inside of a function’s curly braces to execute, the function needs to be called. To do so, you write the name of the function followed by parentheses:
functionName();

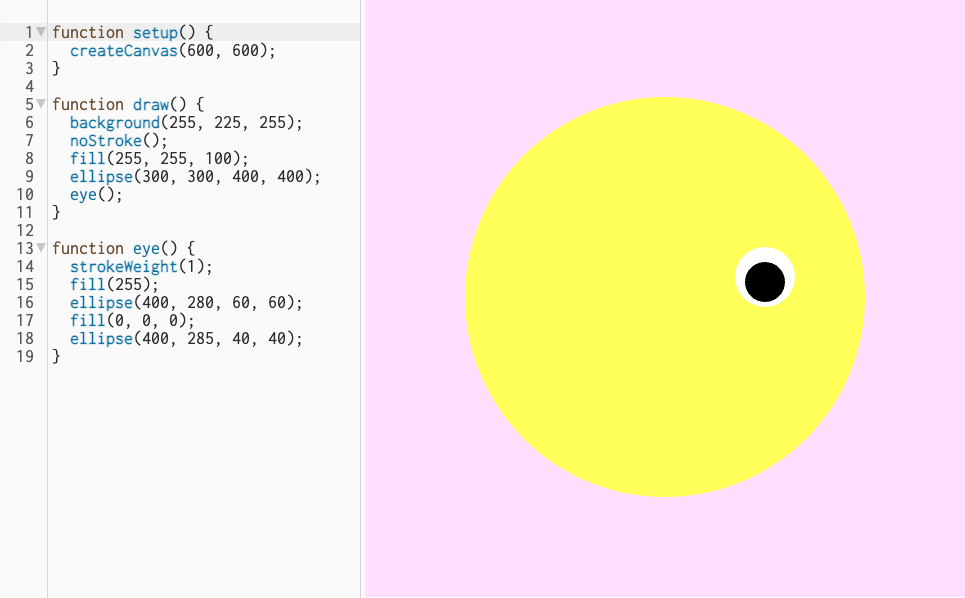

You might notice that this syntax looks very similar to the commands for shapes like ellipse() and rect(). This is because those commands are functions that are included in the p5.js library! Let’s now call the function in the example:
function setup() {
createCanvas(600, 600);
}
function draw() {
background(255, 225, 255);
noStroke();
fill(255, 255, 100);
ellipse(300, 300, 400, 400);
eye(); // calling the eye function
}
function eye() { // setting up the eye function
strokeWeight(1);
fill(255);
ellipse(400, 280, 60, 60);
fill(0, 0, 0);
ellipse(400, 285, 40, 40);
} // end of the eye function
2: Parameters
We can call a function as many times as we want, by writing the command to call the function again and again:
eye();
eye();
But this is not very helpful as it will draw the same drawing in the same place. To make the function more flexible, we will use parameters. A parameter is a useful way of passing value into a function:
function myFunction(parameter1, parameter2) {
console.log("parameter 1 is: " + parameter1);
console.log("parameter 2 is: " + parameter2);
}
myFunction(10, 100); // here, we are passing the value 10 into parameter1, and 100 into parameter2
myFunction(77, 81); // here, we are passing the value 77 into parameter1, and 81 into parameter2
Again, you’ll see that the syntax looks a lot like the commands for drawing shapes. That is because the values set for things like x, y, width and height are parameters for the shape drawing functions. One easy way to think about functions is that we are creating our own drawing commands.
function setup() {
createCanvas(600, 600);
}
function draw() {
background(255, 225, 255);
noStroke();
fill(255, 255, 100);
ellipse(300, 300, 400, 400);
eye(200, 280); // left eye
eye(400, 280); // right eye
}
function eye(x, y) {
strokeWeight(1);
fill(255);
ellipse(x, y, 60, 60); // using x and y instead of hardcoded numbers
fill(0, 0, 0);
ellipse(x, y+5, 40, 40);
}
Parameters are essentially variables that are a part of a function. In this example, we replaced the set numbers for the x and y coordinates of an eye with the x and y parameters. That way, those values are actually decided when the function eye() is called in the draw function, allowing us to reuse the same components but with more control.
The scope of parameters are limited to the curly braces of a function. In other words, the variables x and y that are being used in the function eye won’t be recognized outside of the eye() function’s curly braces. If you try to use x and y outside of the eye() function’s curly braces, you’ll get an error. This also means that you can use the labels x and y for other functions.

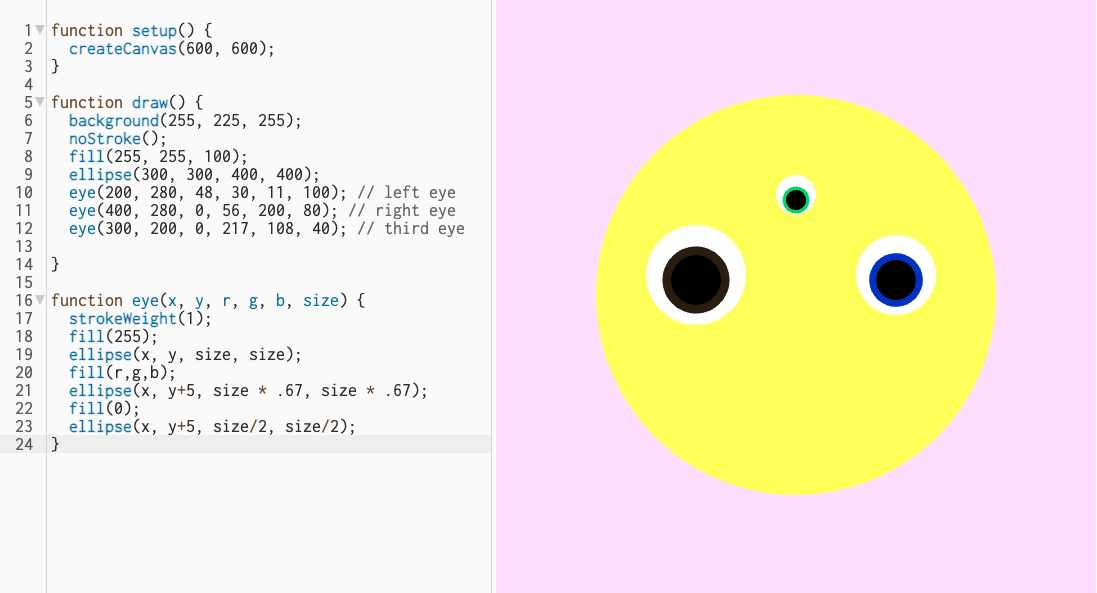

You can set as many parameters as you’d like to make your function work for you.
function setup() {
createCanvas(600, 600);
}
function draw() {
background(255, 225, 255);
noStroke();
fill(255, 255, 100);
ellipse(300, 300, 400, 400);
eye(200, 280, 48, 30, 11, 100); // left eye
eye(400, 280, 0, 56, 200, 80); // right eye
eye(300, 200, 0, 217, 108, 40); // third eye
}
function eye(x, y, r, g, b, size) {
strokeWeight(1);
fill(255);
ellipse(x, y, size, size);
fill(r,g,b);
ellipse(x, y+5, size * .67, size * .67);
fill(0);
ellipse(x, y+5, size/2, size/2);
}
3: Using Global and Local Variables
When a variable’s scope is limited to the curly braces of a single function, that is called a local variable. Variables that are declared outside of any function, and can be used inside any function are called global variables. Programmers use a combination of local and global variables to serve different purposes. In our case, we’ll use local variables to set the rules of our drawing components and global variables to animate them.

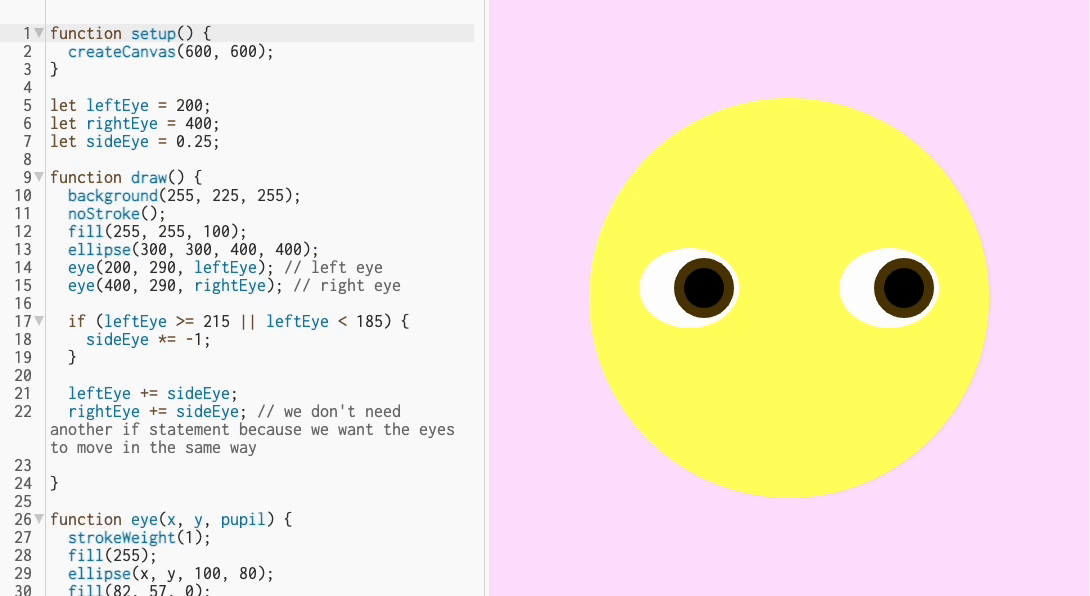

In this example, we will use global variables leftEye, rightEye, and sideEye with if/else statements to make the pupil/irises of the eye go from side to side:
function setup() {
createCanvas(600, 600);
}
let leftEye = 200;
let rightEye = 400;
let sideEye = 0.25;
function draw() {
background(255, 225, 255);
noStroke();
fill(255, 255, 100);
ellipse(300, 300, 400, 400);
eye(200, 290, leftEye); // left eye
eye(400, 290, rightEye); // right eye
if (leftEye >= 215 || leftEye < 185) {
sideEye *= -1;
}
leftEye += sideEye;
rightEye += sideEye; // we don't need another if statement because we want the eyes to move in the same way
}
function eye(x, y, pupil) {
strokeWeight(1);
fill(255);
ellipse(x, y, 100, 80);
fill(82, 57, 0);
ellipse(pupil, y, 60, 60);
fill(0);
ellipse(pupil, y, 40, 40);
}
🎨 In our Drawing Tool: We’ve made color changes for one key, but now we can assign different colors to different keys! Read the comments below to see how we’ve added to our initial If-Then-Else statement by adding Else-if.
function keyPressed() { // When the key is pressed
if (key == "r") { // And if the key is "r" , fill the circle with red
fill(255,0,0);
} else if (key == "g") { // Otherwise, if the key is "g" , fill the circle with green
fill(0,255,0);
} else if (key == "b"){ // Otherwise, if the key is "b" , fill the circle with blue
fill(0,0,255);
} else { // And, if the key pressed is anything else other than r, g, b, or x, fill the circle with white
fill(255);
}
}
Functions are important for coding because they allow us to organize our projects in a modular way, that is with multiple pieces making up a whole. See how functions can help us collaborate with code!
