Color

Grade 6~8

A. Story Behind the Screen

Look at the screen in front of you right now. Every color you see—bright pinks, glowing greens, stormy blues—is made from just three colors of light: red, green, and blue—also known as RGB.

You can’t always see it, but it’s true. If you looked at your phone or computer screen under a microscope (cool science class moment!), you’d see tiny red, green, and blue lights—called pixels—turning on and off in different combinations. That’s how screens make color: by mixing light.

RGB screen

This kind of color mixing is called additive color. It’s different from mixing paint, where adding more makes things darker. With light, adding more actually make things brighter.

RGB mixing

In this topic, we’ll learn to cast some color spells together using code. You’ll learn how to control the RGB colors in p5.js, a creative coding environment made for artists, designers, and anyone curious about how code can be expressive.

B. Meet RGB

Let’s start by updating the background() in the p5.js editor:

function setup() {
  createCanvas(400, 400);
}

function draw() {
  background(255, 0, 0);  // r, g, b
}

If you click the Play button, the background of the canvas should be filled in bright red. Let’s break this down to better understand what’s going on:

  • RGB ranges from a minimum value of 0, to a maximum value of 255. These numbers control the brightness levels of the red, green, and blue lights.
  • In this case, the sketch is coloring the background in the brightest possible red in RGB. background(255, 0, 0); means: full red light, no green light, and no blue light.

Mini-Challenge: Can you update background() to fill the canvas with the brightest blue possible?

Tip: In the RGB world, background(255, 255, 0); creates yellow, background(255, 0, 255); creates magenta, and background(0, 255, 255); creates cyan.

Play around! What happens when you assign the same number to R, G, B?

  • background(255, 255, 255) will make the background white
  • background(0, 0, 0) will make the background black
  • background(150, 150, 150) will make the background light grey

Assigning the same number to R, G, B creates a color on the grayscale.

Tip: background(255) is the short-hand way of writing background(255, 255, 255). This saves you the trouble of having to type the same number into background() three times.

C. Filling Shapes with Color

Let’s add an ellipse and give it color using the fill() feature:

function setup() {
  createCanvas(400, 400); // w, h
  rectMode(CENTER);
}

function draw() {
  background(220);
  fill(255, 255, 0); // r, g, b
  rect(200, 200, 40, 40); // x, y, w, h
  ellipse(200, 200, 40, 40); // x, y, w, h
}

By default, fill() recognizes RGB values and sets the color of the shapes you draw. But what if you want to fill the ellipse with a different color? You will need to place another fill() right before the ellipse.

function setup() {
  createCanvas(400, 400); // w, h
  rectMode(CENTER);
}

function draw() {
  background(220);
  fill(255,255,0); // r, g, b
  rect(200, 200, 40, 40); // x, y, w, h
  fill(255,0,255); // r, g, b
  ellipse(200, 200, 40, 40); // x, y, w, h
}

Code Snippet: fill() example.

Once you feel comfortable with using RGB colors, you have the option of going further by adding a fourth number to fill() to make something see-through!

fill(255, 0, 0, 100);  // r, g, b, alpha

The last number is called the alpha value. It also ranges from 0 (fully transparent) to 255 (fully opaque).

Mini-Challenge: Try overlapping shapes with different alpha values. What kinds of layering effects can you make?

D. Draw your favorite snack

Let’s use everything you’ve learned so far to draw a snack you love. Think about ways you could represent your snack using 2D primitives like ellipses and rectangles. And instead of guessing the RGB values of a color you want to use, play around with this color picker to choose specific colors. Below is an example of a lollipop:

lollipop made in p5.js

Code Snippet: lollipop example.

Tip: Adding noStroke() removes the black outline around shapes. stroke() sets the outline to a different color. strokeWeight() alters the thickness of the outline.

Grade 9~12

E. Color Modes

Color scientists create color models such as RGB to describe colors. Color models contain mathematical rules. For example, RGB can only be expressed between 0 and 255.

Beyond RGB, there are many other colorMode() you could use in p5.js. For instance, HSB standing for hue, saturation, and brightness, is a color model that can make coloring more intuitive.

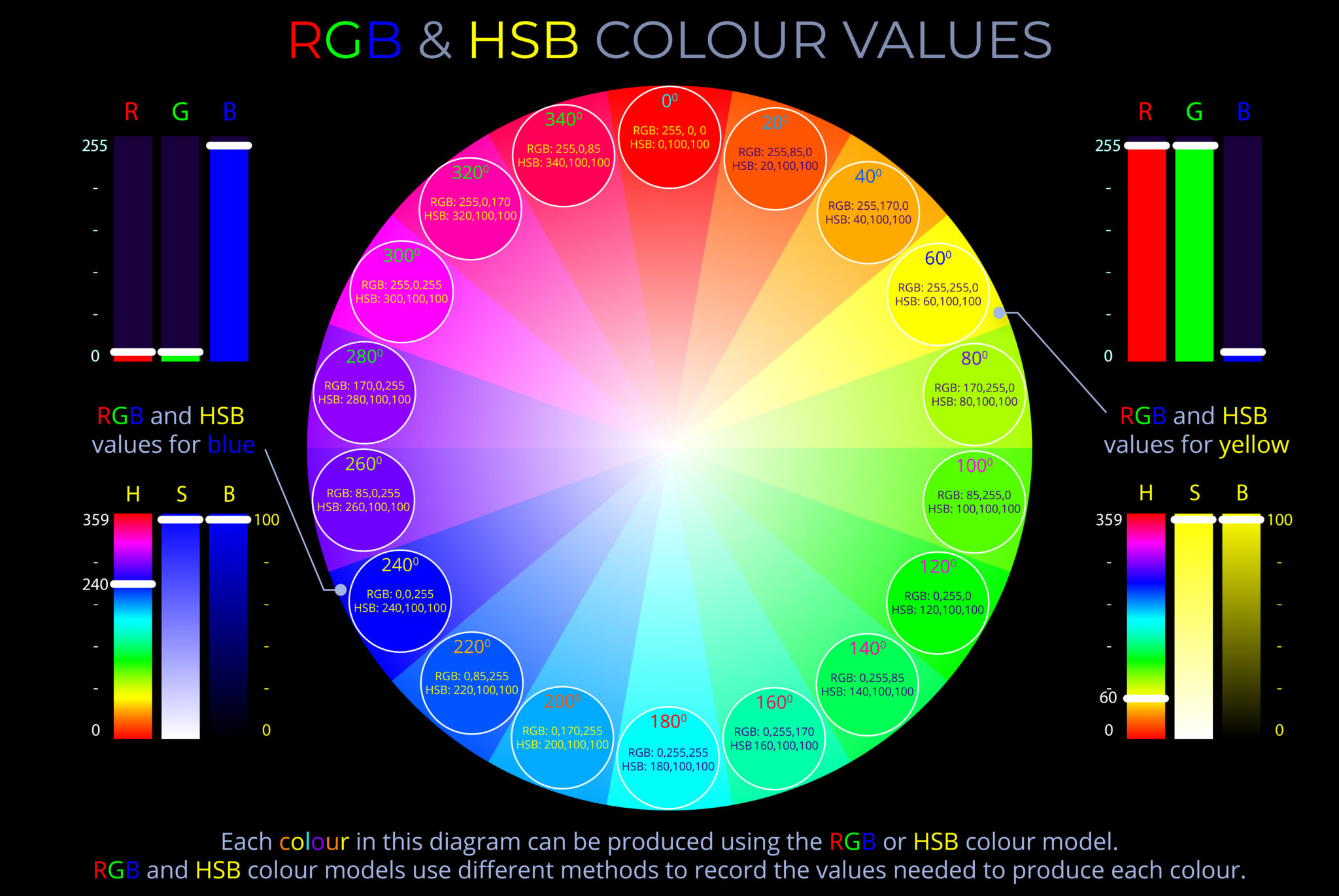

RGB to HSB diagram 1

You can draw the exact same color in both RGB and HSB modes, except you’d describe them differently because they follow different mathematical rules.

function setup() {
  createCanvas(400, 400); // w, h
  rectMode(CENTER);
}

function draw() {
  background(220);
  // Set color to yellow in RGB
  colorMode(RGB);
  fill(255,255,0); // r, g, b
  rect(200, 200, 40, 40); // x, y, w, h
  // Set color to yellow in HSB
  colorMode(HSB);
  fill(60, 100, 100); // h, s, b
  ellipse(200, 200, 40, 40); // x, y, w, h
}

Code Snippet: colorMode() example.
